FAT2W15

FRAME ALIGNMENT TOOL 2.0

The second version of our frame alignment tool machined by the very talented Mark Bentley of Bentley components to ensure the highest possible quality.

The most useful and versatile tool you will find for building predictably straight frames.

Designed to be adaptable

  • It can be used as a hard stop for stays in jigs and fixtures

  • To check alignment of other fixtures or tooling

  • Hold bridges and other small parts when welding or brazing

  • Check tyre clearance

  • Measure frame deflection after heat works


2.0 FEATURES

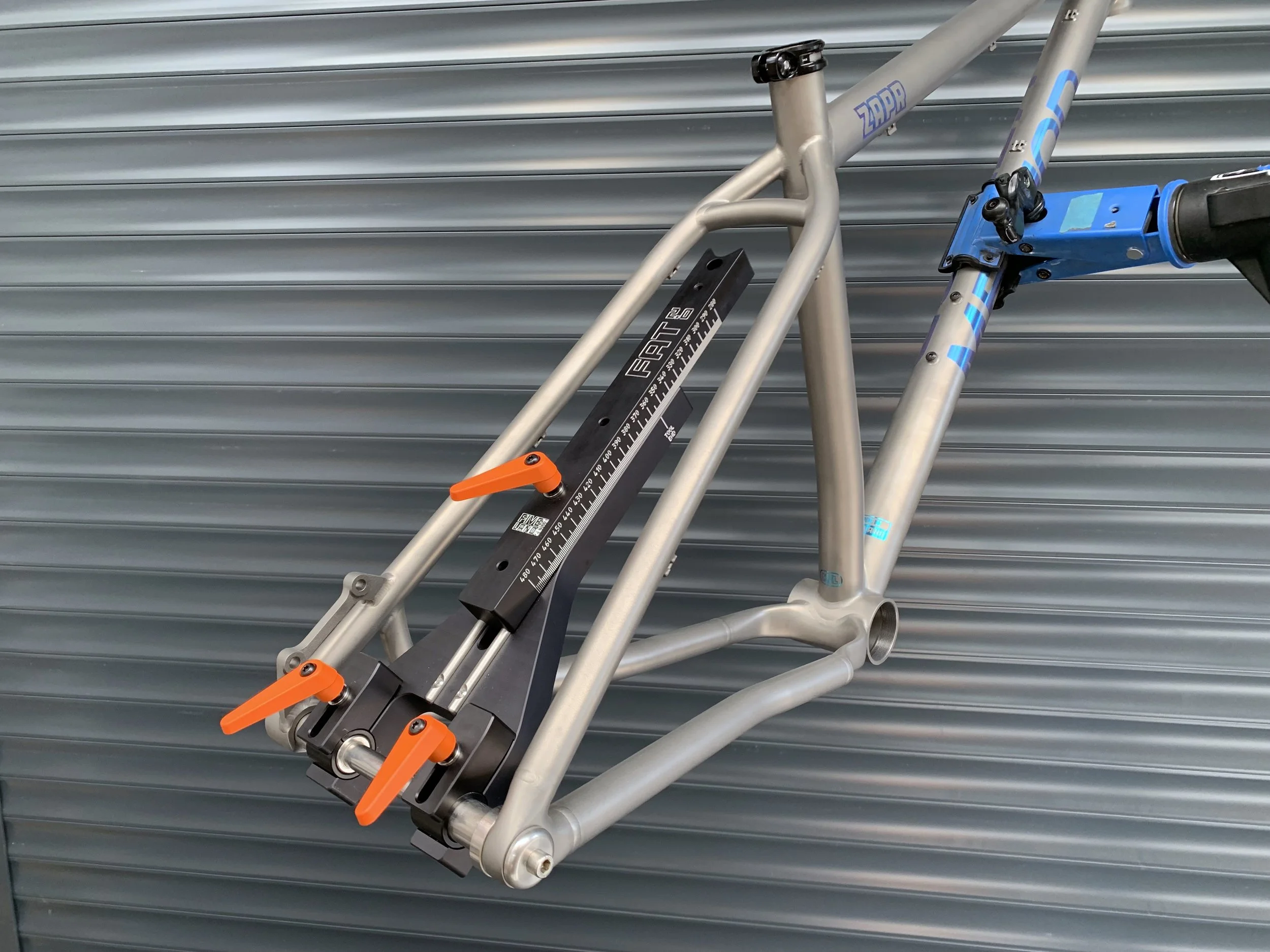

  • Sliding arm on stainless runners that allows for use on frames to suit wheel sizes from 24” to 36”

  • Quick release clamps

  • Compatible with Paragon 1” indexing and .750” non-indexing dummy axles by using the supplied reducing shims. 120mm axle spacing and above.

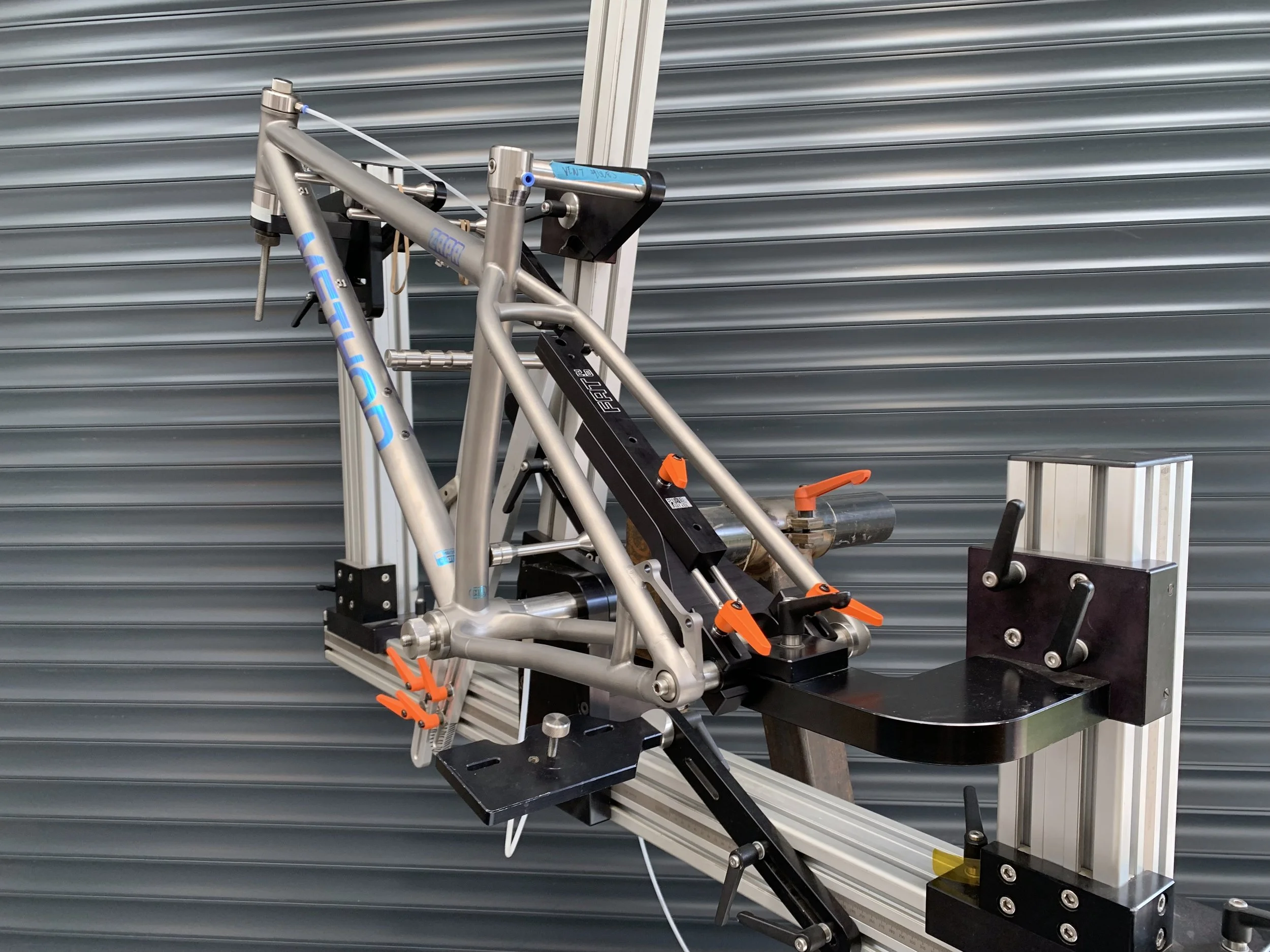

  • - Can be used both in and out of fixtures and jigs. Compatible with Anvil, TBA and Cobra mitreing jigs and frame fixtures

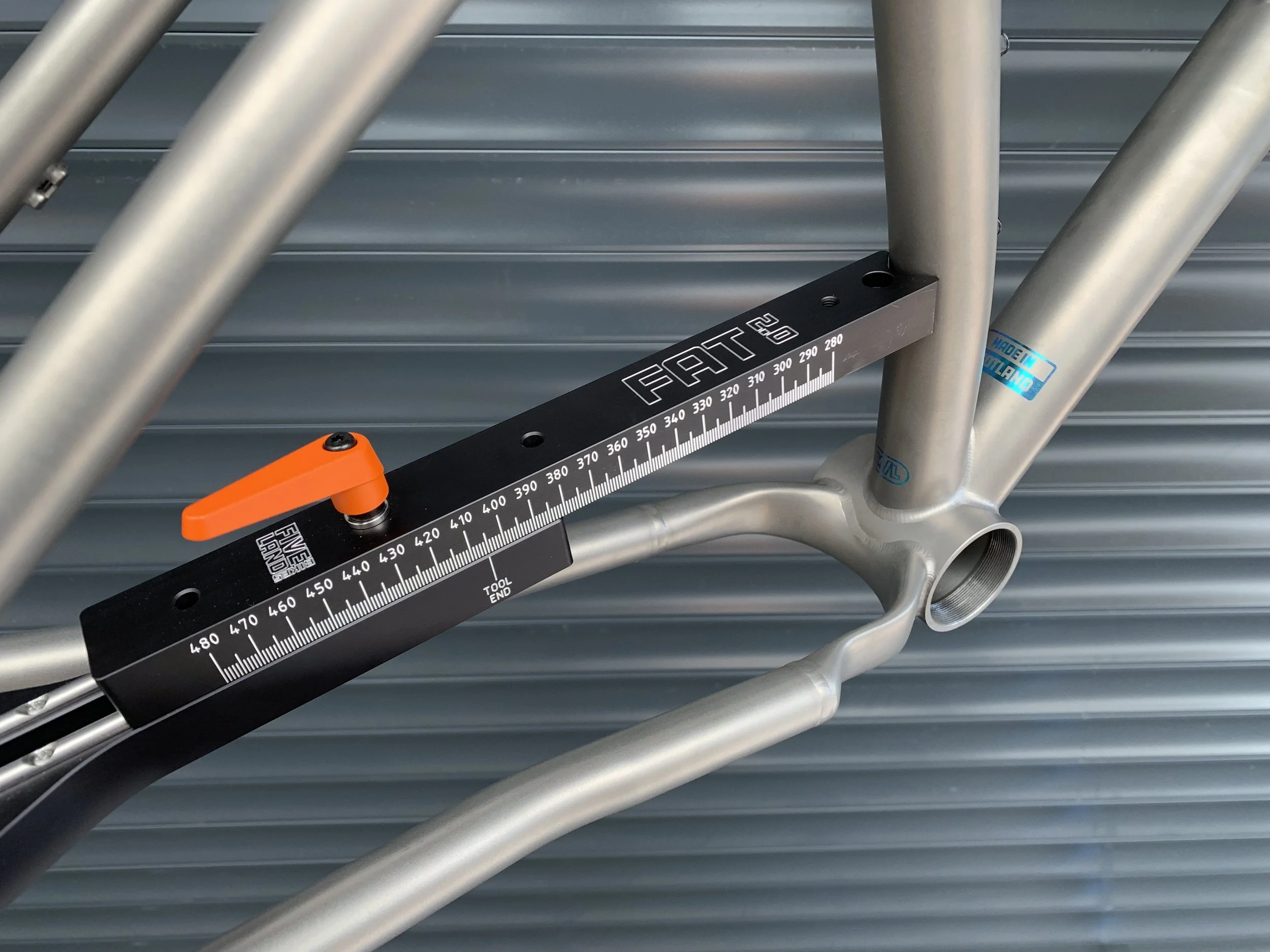

  • Machined scale

  • Anodised

  • V groove on top of tool to align seat tube relative to axle. Also allows the accurate holding of bridges even with a mudguard boss in place and verifying alignment of other fixtures.

  • Tapped and bored holes on the sliding arm to allow the addition of your own design of  tyre spacers or other tools. (We are developing dummy tyre profiles)

For UDH builds please use Paragon Machine Works 1” or .750” axles along with UDH adaptors FT1173 or FT1162. Not compatible with 1.125” dummy axles.

PRE ORDER

We are taking pre orders for the next batch due in Q1 of 2025.

A 50% deposit secures your tool in the next batch.

£575.00 ex VAT

Free UK delivery

(please contact for quote if not in UK)

FAT 2.0 TESTIMONIALS

“This thing is ace! Never had so much accuracy… it goes straight into my top 2 of favourite tools” - Rizzo Cycles

"The Five Land Bikes frame alignment tool is one of the most important tools in my workshop. It gives me 100% confidence in setting out and checking the alignment of rear triangles and it's been a massive time saver. I've been using Version 1, and with the new improvements in V2 it looks like the tool got even better." - Donard Custom Bikes

“Seriously one of the best tools I have, this has changed my frame quality so much.” - WHBradford Designs
